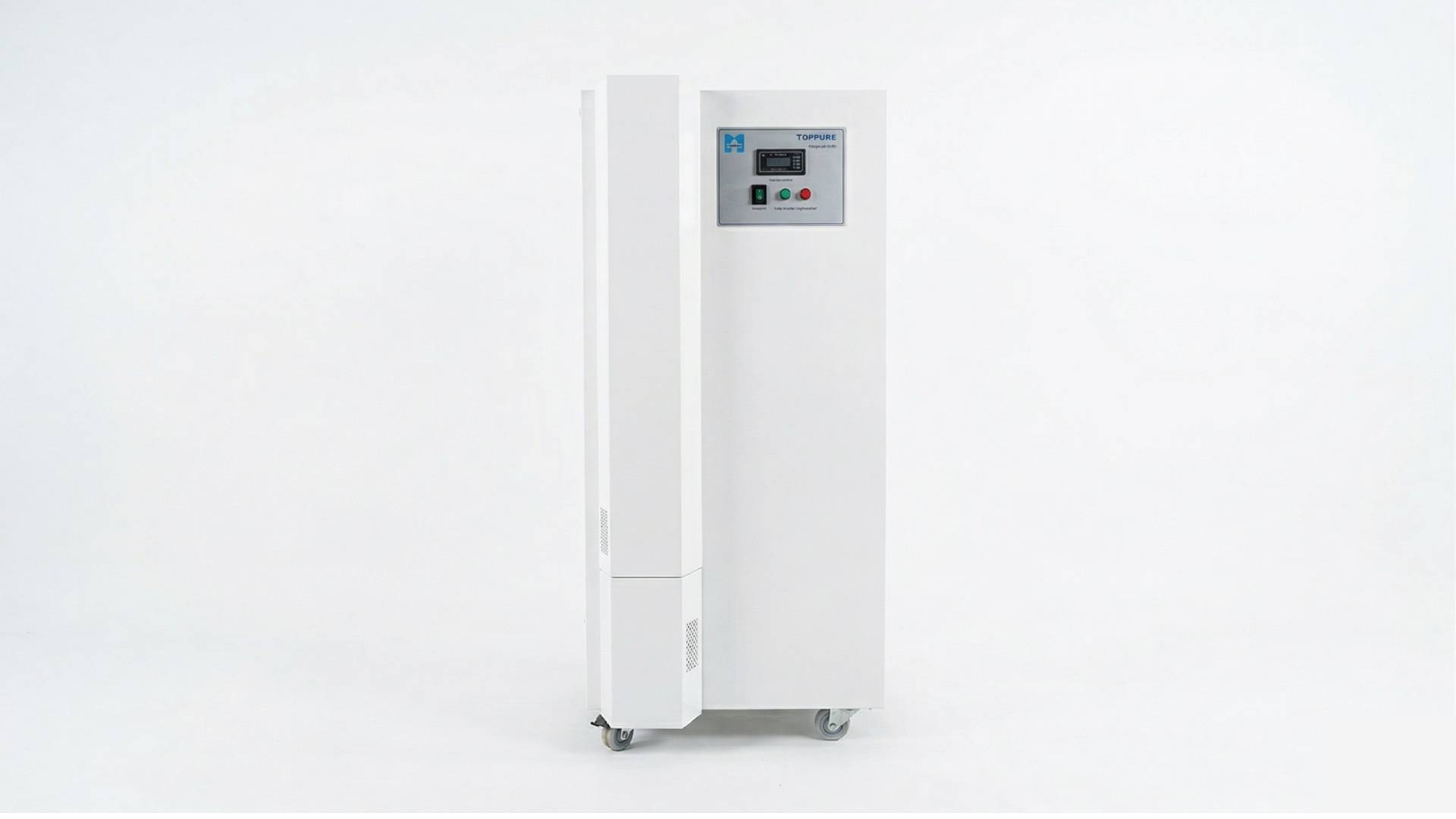

TOPPURE 30PLH

The TOPPURE 30LPH is a water purification system using Reverse Osmosis (RO) and Deionization (DI) processes, designed for use in chemical analysis laboratories. It has a production capacity of not less than 30 liters per hour and provides water quality in accordance with standards, with a conductivity value of less than 1 µS/cm or a water resistivity greater than 1 MΩ.

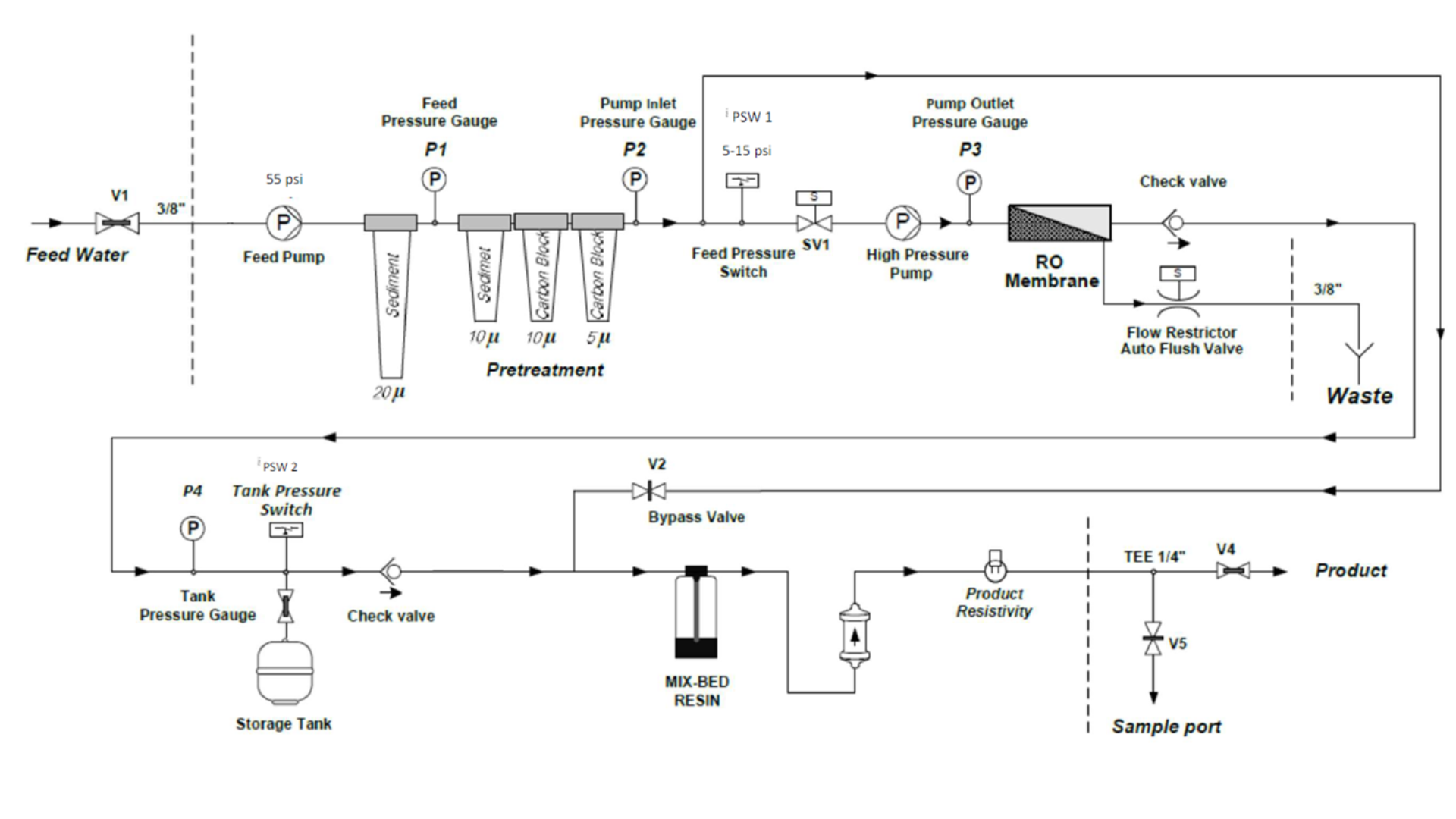

The TOPPURE 30LPH is equipped with a pretreatment system consisting of three cartridge filters and a feed pump for boosting water pressure. These components are integrated within a single enclosed tank system, making the unit compact and easy to move. It is especially suitable for locations with low inlet water pressure.

The operating pressure of the high-pressure pump can be adjusted by setting two pressure valves: the Rejection Valve and the Recovery Valve.

For producing purified water, the TOPPURE 30LPH is controlled using a Pressure Switch and a Solid-State Relay to manage the system operation.
